Plastic Injection Molding
Stabilizes mold cooling water temperature to help shorten molding cycles and hold dimensional accuracy.
TaipeiPLAS 2026
September 15–19, 2026
Taipei Nangang Exhibition Center, Hall 1
View Official Exhibition Website
COLDER · AT-B SERIES
COLDER AT-B Series Air-Cooled Industrial Chiller
Cooling Solutions for Plastic Processing
±1°C
Outlet temperature control accuracy
20%
Energy saving vs. conventional models
34.9kW
Max. cooling capacity at 60Hz
40+
Export markets
The COLDER AT-B Series air-cooled industrial chiller is built for plastic injection molding, extrusion, blow molding and rubber processing: ±1°C temperature control, ~20% energy saving and no cooling tower required. AT-60B, AT-80B and AT-120B will be on display.
Manufacturer: GIN-DAI Precision Technology Co., Ltd. (COLDER) | HUARONG GROUP × COLDER, co-exhibiting at TaipeiPLAS 2026
What Is an Air-Cooled Industrial Chiller?Product Overview
An air-cooled industrial chiller uses a compressor and an air-cooled condenser to lower the temperature of circulating cooling water and deliver it steadily to production equipment, with no cooling tower required. Plastic processing needs precise temperature control at every stage, from material melting and molding through to cooling and solidification. Unstable water temperature can cause dimensional variation, surface defects or shorter mold life, which makes a stable supply of cooling water one of the foundations of process quality.
How an Air-Cooled Chiller WorksHow It Works
- 1 Compression The compressor pressurizes low-pressure refrigerant gas into a high-temperature, high-pressure gas.
- 2 Condensation (air-cooled heat rejection) The air-cooled condenser rejects heat with fans; the refrigerant releases heat and condenses into liquid — which is why no cooling tower is needed.
- 3 Expansion The refrigerant passes through the expansion device, dropping in pressure and temperature so it is ready to absorb heat.
- 4 Evaporation (chilled water cooling) In the evaporator the refrigerant absorbs heat from the circulating water; the chilled water reaches the set temperature (±1°C) and is supplied to the process equipment.
Applicable ProcessesApplications
Extrusion
Supplies the continuous cooling water required by extrusion dies and cooling or sizing sections.
Blow Molding
Helps molds and products cool and set quickly, keeping production cycles stable.
Rubber Processing
Controls temperature rise during processing to maintain material properties and process stability.
PET Processing
Supports the cooling water temperature and flow that PET molding processes require.
Core BenefitsWhy AT-B Series
The AT-B Series balances temperature control accuracy, production efficiency and long-term operating cost to keep production lines running steadily.
Precise Temperature Control
Outlet temperature is held within ±1°C, supporting stable process quality.
Higher Production Efficiency
A stable cooling water supply helps shorten molding cycles and reduces downtime and defects caused by temperature fluctuations.
Energy Saving
Saves approximately 20% energy compared with conventional models, lowering long-term electricity cost.
Stable and Reliable
Multiple safety protections reduce the risk of equipment damage under abnormal conditions.
Flexible Configuration
A range of models covers different cooling capacities, so selection can match the scale of your production line.
Easy Maintenance
A 7-inch HMI helps monitor operating status and simplifies daily maintenance checks.
Designed Beyond StandardEnhanced Configuration
The machines shown at TaipeiPLAS 2026 use an enhanced configuration. The figures below are absolute values; final specifications remain subject to quotation and technical confirmation.
Main water tank capacity
800L
Auxiliary water tank capacity
360L
Full stainless steel piping
SUS304
Plate heat exchanger
SUS316
HMI smart interface
7inch
The machines on display also use a high filtration capacity design. This enhanced configuration differs from the standard catalog specifications in the table below; actual specifications are subject to the formal quotation.
Models on DisplayAT-60B / AT-80B / AT-120B
AT-60B, AT-80B and AT-120B will be shown at TaipeiPLAS 2026. The machines on display use a customized exterior finish; the standard catalog color is beige.

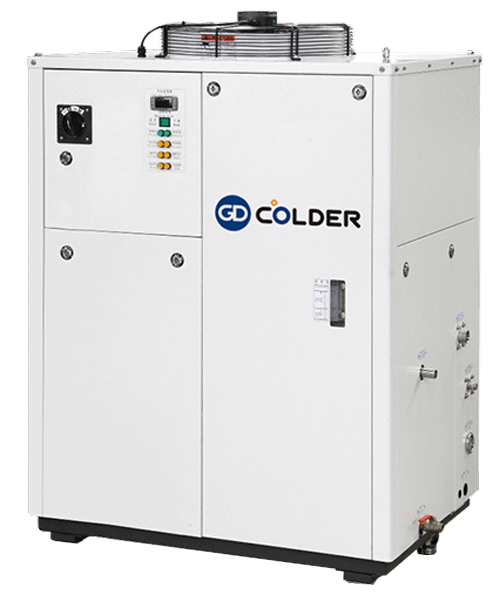

AT-60B
For small to medium plastic processing equipment and single-machine cooling.

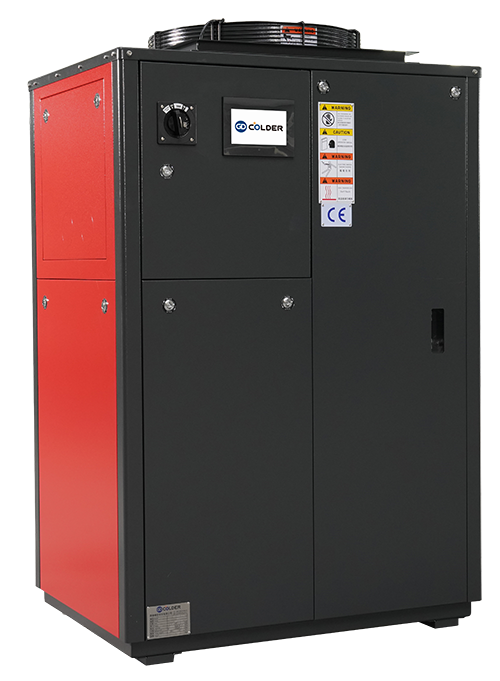

AT-80B
For medium to large plastic processing equipment, balancing stability and efficiency.

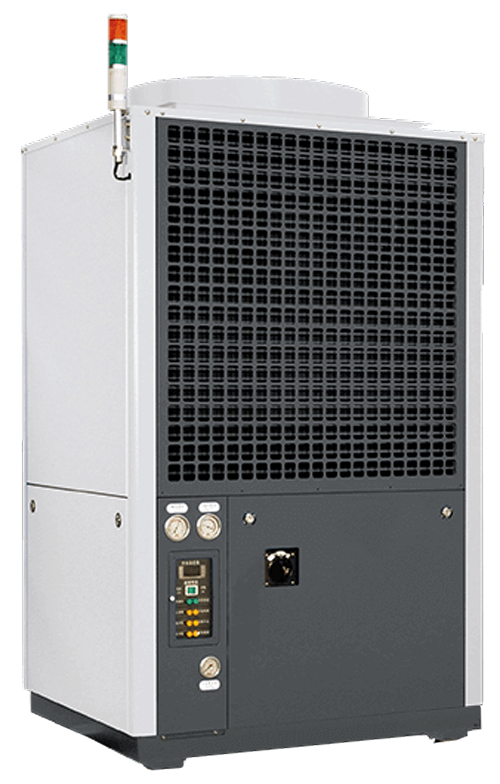

AT-120B
For large production lines and high-load equipment that need greater cooling capacity.
Model SpecificationsStandard Catalog
The table below lists the standard catalog specifications from the official website. The machines on display use an enhanced configuration; actual specifications are subject to formal quotation and technical confirmation.
| Item | AT-60B | AT-80B | AT-120B |
|---|---|---|---|
| Compressor (HP) | 5 | 6 | 10 |
| Cooling capacity 50/60Hz (kW) | 14.0 / 17.5 | 16.7 / 20.9 | 27.9 / 34.9 |
| Cooling capacity (Kcal/h) | 12,000 / 15,000 | 14,400 / 18,000 | 24,000 / 30,000 |
| Cooling capacity (BTU/h) | 48,000 / 60,000 | 57,600 / 72,000 | 96,000 / 120,000 |
| Power supply | 3ph 220/380V 50/60Hz | 3ph 220/380V 50/60Hz | 3ph 220/380V 50/60Hz |
| Outlet temperature range | 8~30°C ±1°C | 8~30°C ±1°C | 8~30°C ±1°C |
| Pump (HP) 50/60Hz | 1 / 1.7 | 1 / 1.7 | 1.5 / 2 |
| Water pressure (kg) | 1.8 / 2.5 | 1.8 / 2.5 | 2.5 |
| Water flow (L/min) | 90 | 90 | 150 |
| Cold water inlet / outlet | 1" | 1" | 1 1/4" |
| Dimensions L×W×H (mm) | 1,048×748×1,525 | 1,048×748×1,625 | 1,300×861×1,985 |
| Water tank capacity (L) | 135 | 125 | 280 |
| Machine weight (kg) | 325 | 360 | 525 |
| Ambient temperature / humidity | 5~40°C / 40~80% | 5~40°C / 40~80% | 5~40°C / 40~80% |
| Remote control power | AC220V, DC24V | AC220V, DC24V | AC220V, DC24V |
Swipe horizontally to view the full table
The machines on display use an enhanced configuration; actual specifications are subject to the COLDER quotation.
Product FeaturesTechnology
- Eco-friendly refrigerantUses R407C refrigerant.
- Precise temperature controlOutlet temperature control accuracy of ±1°C.
- Energy-saving designSaves approximately 20% energy compared with conventional models.
- Compressor and pumpInternational-brand compressors and pumps with a high E.E.R.
- No cooling tower requiredThe air-cooled design needs no additional cooling tower.
- Multiple safety protectionsNo-Fuse Breaker (NFB), water level, reverse-phase, phase-loss, over-temperature, under-temperature and overload protection.
How to Choose Between Air-Cooled and Water-Cooled Chillers
| Comparison | Water-cooled chiller | Air-cooled chiller (AT-B Series) |
|---|---|---|
| Cooling tower | Requires a separate tower and piping | Not required; fans reject heat directly |
| Installation | Needs a cooling tower, cooling water piping and a circulation pump | Position the unit, connect power and chilled water piping — simpler installation |
| Water cost | Evaporation from the tower requires continuous make-up water | No cooling water consumption |
| Routine maintenance | Tower cleaning, water quality and algae management | Periodic cleaning of the condenser fins |
| Best suited to | Plants with a large cooling load and a centralized cooling room | Lines with limited space, no cooling tower option, or a need to cut water use |
Swipe horizontally to view the full table
Final selection should still be evaluated against on-site cooling load, space and ambient conditions. COLDER also offers water-cooled chillers, which can be discussed at the show.
Industries and EquipmentIndustries & Equipment
Industries
- Rubber and plasticsRubber and plastic processing industry
- Automotive partsAutomotive component production processes
- PackagingPackaging material production processes
- Electronics and semiconductorElectronic and semiconductor component processes
Equipment
- Injection molding machinePlastic injection molding equipment
- ExtruderExtrusion equipment
- Mold coolingMold temperature control and cooling systems
- Bottle blowing equipmentBottle blow molding equipment
- Automated production lineCooling for automated production lines
Six Items to Prepare Before Inquiry and Model SelectionSelection Checklist
The more complete your information, the faster we can determine the cooling capacity, model and water piping layout you need — shortening quotation and implementation time.
- Equipment quantity and typeNumber and tonnage of injection molding machines, extruders, bottle blowing machines and other equipment
- Cooling load requirementCooling load per machine, or the total cooling capacity required for the whole line (kW / Kcal/h)
- Target outlet water temperatureChilled water temperature the process needs, and the acceptable range
- Site power specificationVoltage (220/380V) and frequency (50/60Hz)
- Water piping layoutPipe routing, pipe diameter and the distance from the chiller to the equipment
- Expected implementation scheduleExisting cooling method (cooling tower / replacing an old machine / new line) and target start-up date
About COLDERSince 1952
GIN-DAI Precision Technology Co., Ltd. (COLDER) was founded in 1952, exports to more than 40 countries and established a branch in Shanghai in 2001. The company specializes in industrial chillers and centralized cooling systems for the machine tool, rubber and plastics, and semiconductor industries.
1952Founded
40+Export markets
2001Shanghai branch established
Frequently Asked QuestionsFAQ
What processes is the AT-B Series suitable for?
It suits production lines that need a stable supply of cooling water, including plastic injection molding, extrusion, blow molding, rubber processing and PET processes. Actual implementation should still be confirmed against line load and layout.
How should I choose between AT-60B, AT-80B and AT-120B?
Selection is based mainly on the required cooling capacity (kW), power frequency (50/60Hz) and on-site water piping layout. Share your current equipment quantity, cooling load per machine and line layout, and the COLDER sales team will help evaluate.
Are the specifications of the machines on display the same as the catalog?
No. The machines on display use an enhanced configuration (800 L main water tank, 360 L auxiliary tank, SUS304 full stainless steel piping and more), which differs from the standard catalog specifications. Actual specifications are subject to formal quotation and technical confirmation.
What is the difference between air-cooled and water-cooled chillers?
Air-cooled chillers need no cooling tower and no additional circulating water source, so installation and maintenance are simpler. They suit sites without space for a tower or users looking to cut water cost. Suitability should still be assessed against on-site conditions.
What should I prepare before visiting the booth?
Bring your existing equipment quantity and cooling load, target outlet water temperature, site power specification and water piping layout, plus expected output. The more complete the information, the faster we can recommend a model and configuration.
Bring your equipment list and cooling requirements to TaipeiPLAS 2026
We can help organize your equipment quantity, cooling load, outlet water temperature and site requirements, then work with the COLDER team to recommend an AT-B Series model and configuration.
Book an Exhibition ConsultationRequest Model Selection and QuotationInquiry
To help us reply faster, please include your existing equipment quantity, cooling load, target outlet water temperature and site requirements.
✓
